Frame

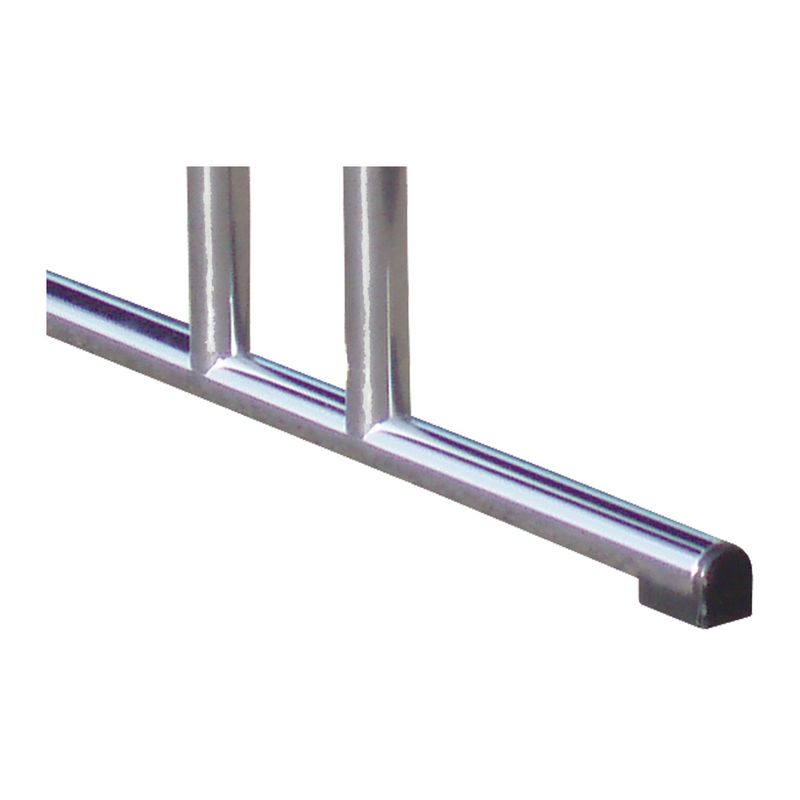

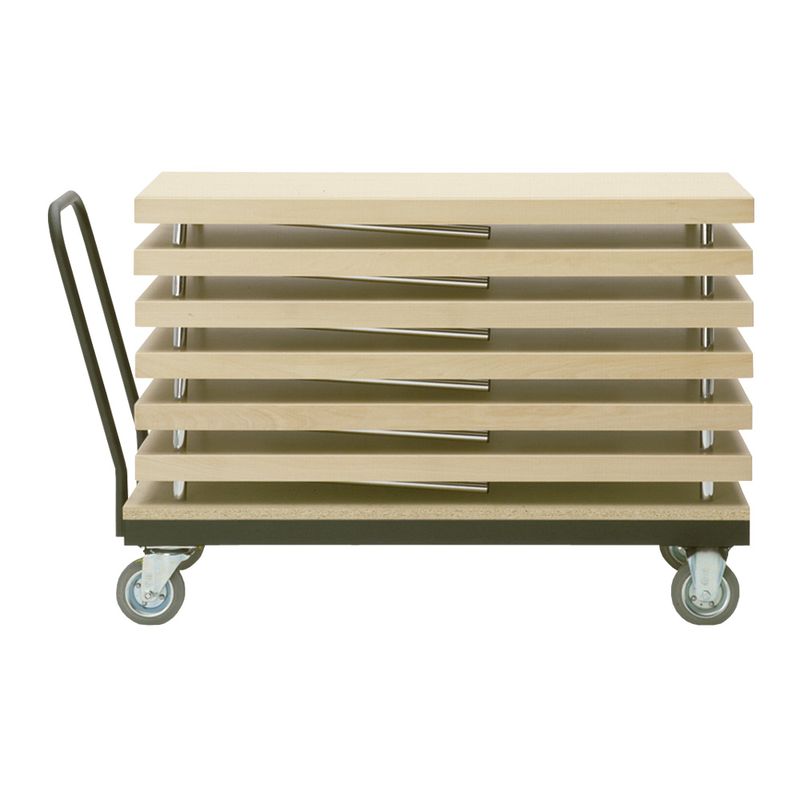

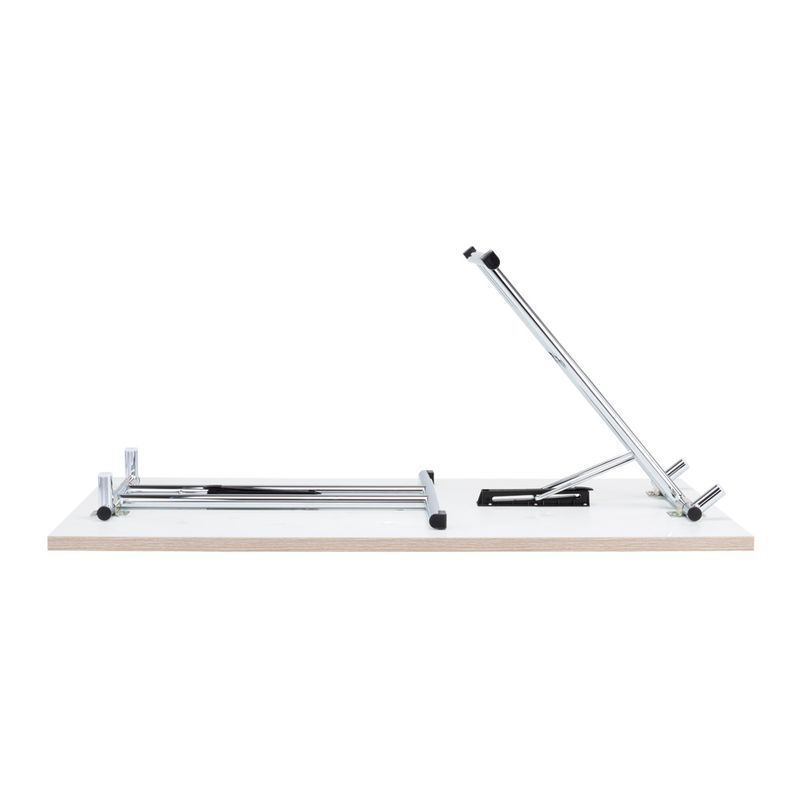

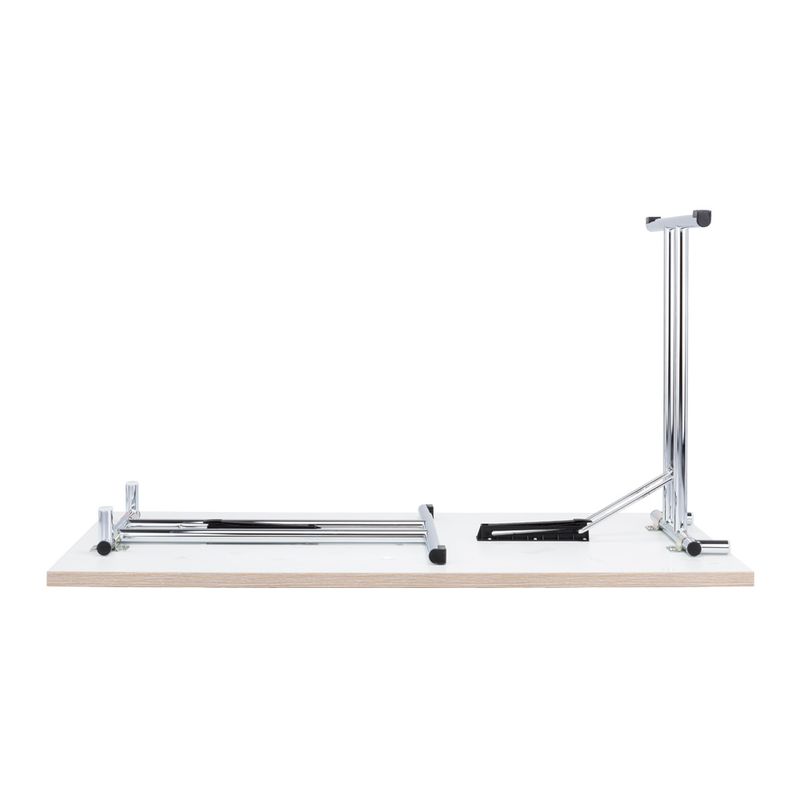

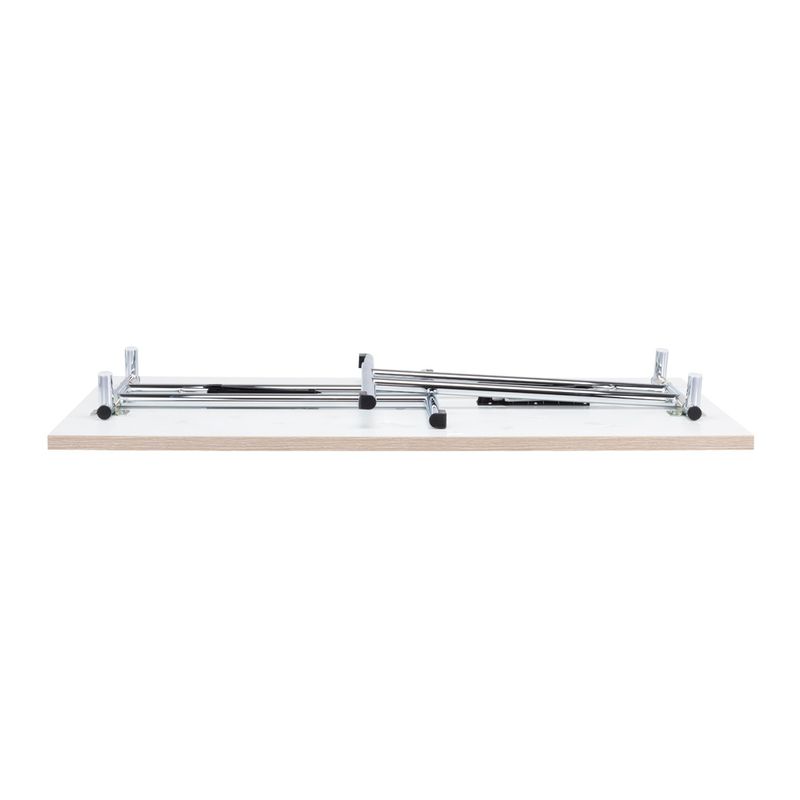

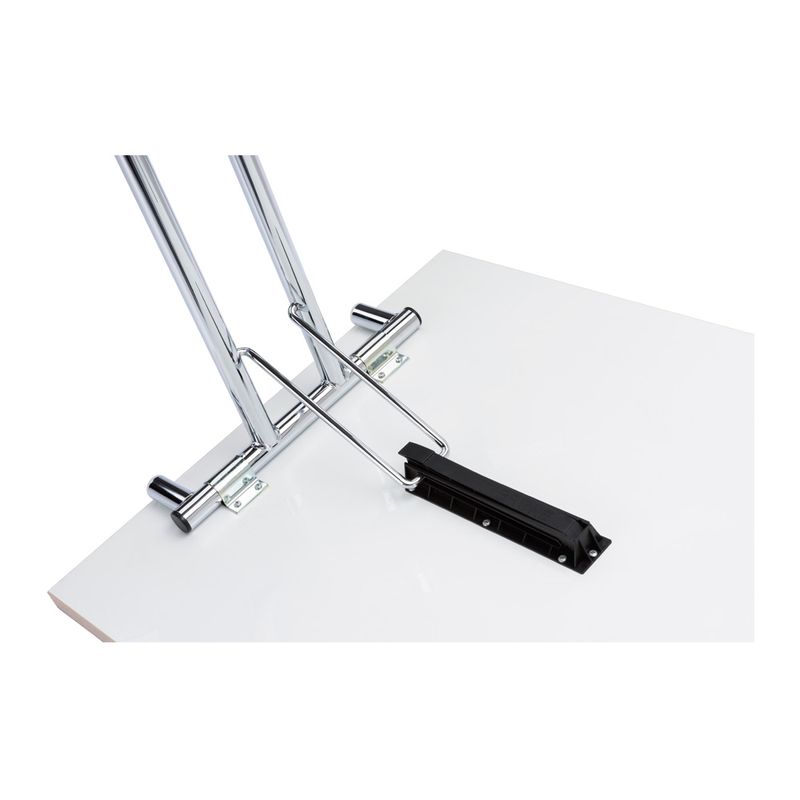

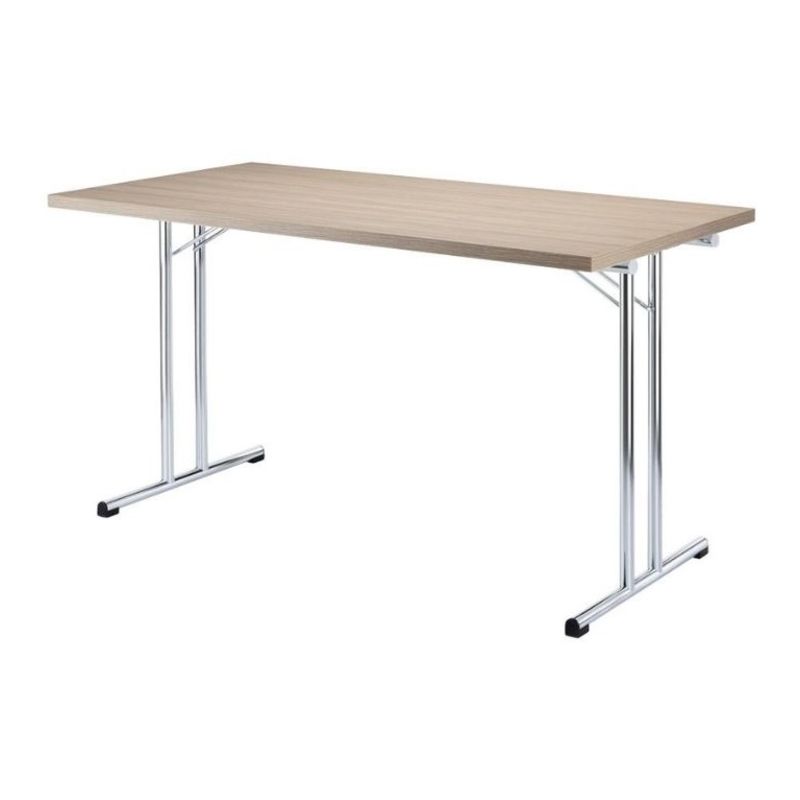

The foldable sections of the table are shaped like a double T, featuring two central columns and two lateral extensions each (Ø 30 x 2 tubular metal). The mechanism can be locked through an angled wire bracket that is suspended in a (patented) smooth-running plastic rail (push-button operation). Fold-back stacking devices, stacking spouts have been welded to the frame on the inside and provided with white plastic caps.

Frame surfaces

Standard version: power-coated in black, optionally powder-coated according to the BRUNE^® collection or chrome- plated.

Table tops

Plate C: 30 mm thick, high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE^® collection. Lower surface white HPL or beech veneer. Straight edge, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).

Plate D: 30 mm thick, 28 mm thick high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE^® collection. Lower surface white HPL or beech veneer. Edge with solid beechwood edge band, smooth finish, 9 mm thick.

Plate E: 30 mm thick, 28 mm high-quality multi-layer plywood board E1, coated in high-pressure laminate (HPL) or veneer according to the BRUNE^® collection. Lower surface: white HPL or beech veneer. Edge: solid beech edge band, crowned, 9 mm thick.

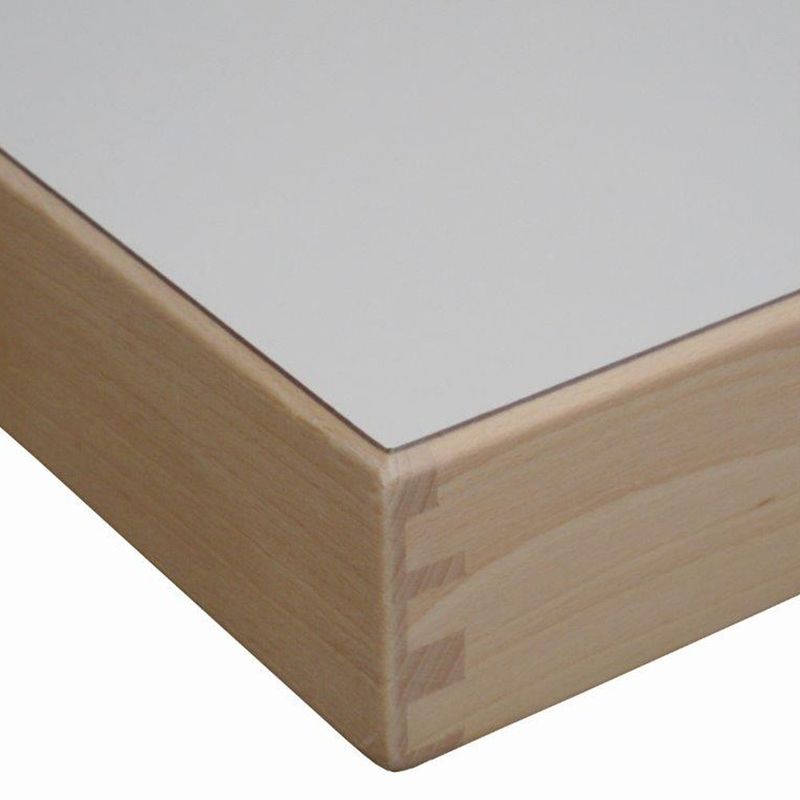

Plate H: 20 mm thick, high-quality multilayer plywood plate E1, top surface covered with HPL according to the BRUNE^® collection. Lower surface white HPL. Edge with solid beechwood edge band, smooth finish, 65 mm high, galvanized corners, 15 mm thick.

Alternative option: Plates C, D + E can also be delivered with a lightweight board made from poplar plywood (replacing the E1 board).

Veneer finish

Real wood veneer from the BRUNE^® collection comes as a standard varnished with a low solvent content water-based lacquer, optionally stained to the BRUNE^® collection.

HPL surfaces

Resopal^®-HPL from the BRUNE^® collection.

Gliders

Plastic gliders

Dimensions

• 75 cm (Plate C + D + E + R)

• 74 cm (Plate H)

Height:

• min. 60 cm

• max. 180 cm

Weights:

• 120x60 cm, 22 kg

• 140x60 cm, 24 kg

• 160x60 cm, 26,5 kg

• 120x70 cm, 24 kg

• 140x70 cm, 27 kg

• 160x70 cm, 30 kg

• 120x80 cm, 28 kg

• 140x80 cm, 30 kg

• 160x80 cm, 33 kg

Trapez

• 140x70x61 cm, 20 kg

• 160x80x69 cm, 24 kg
