Frame

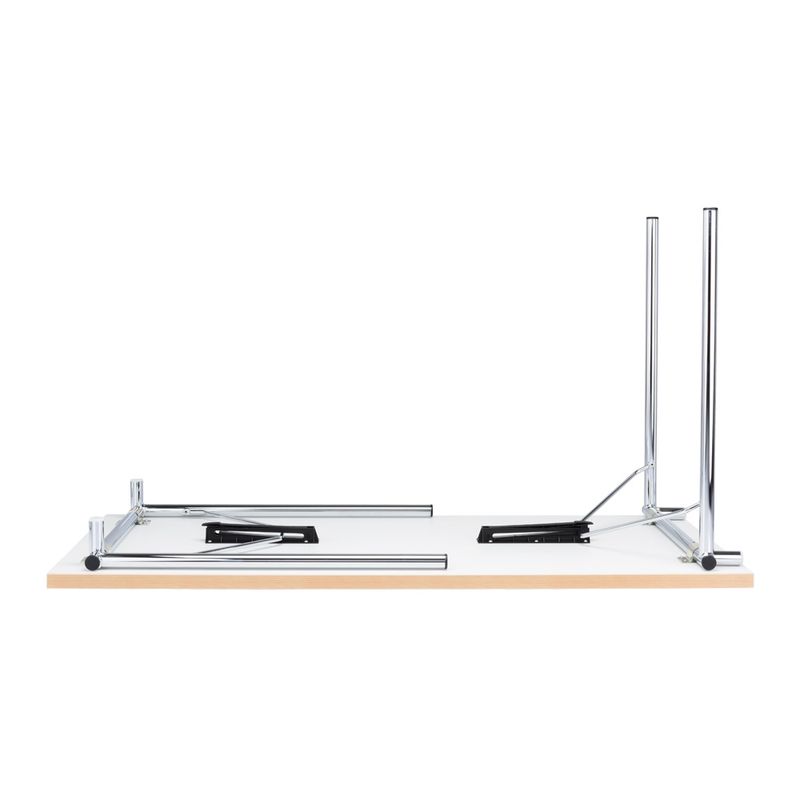

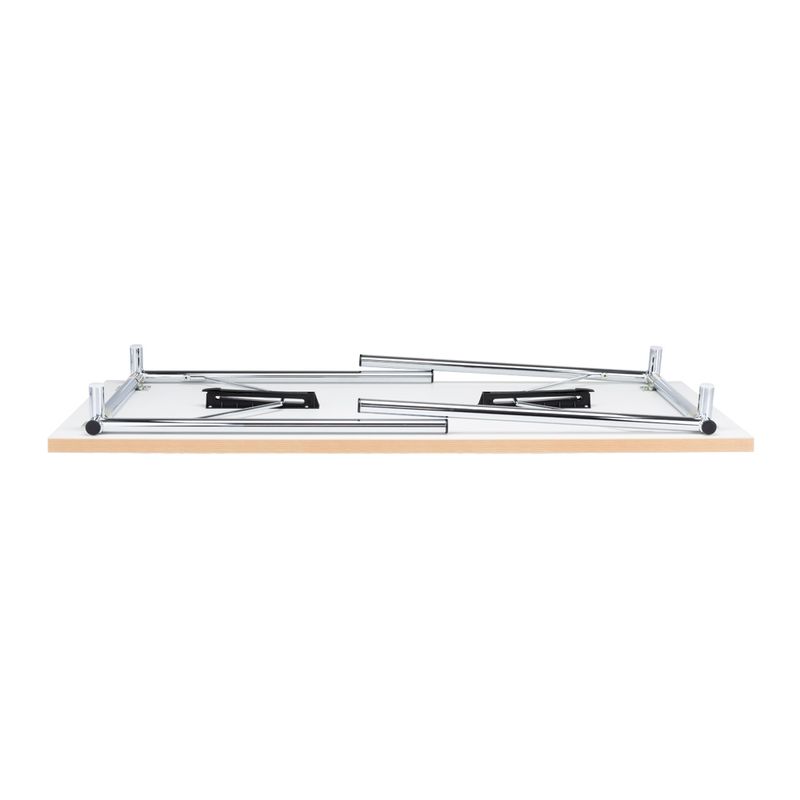

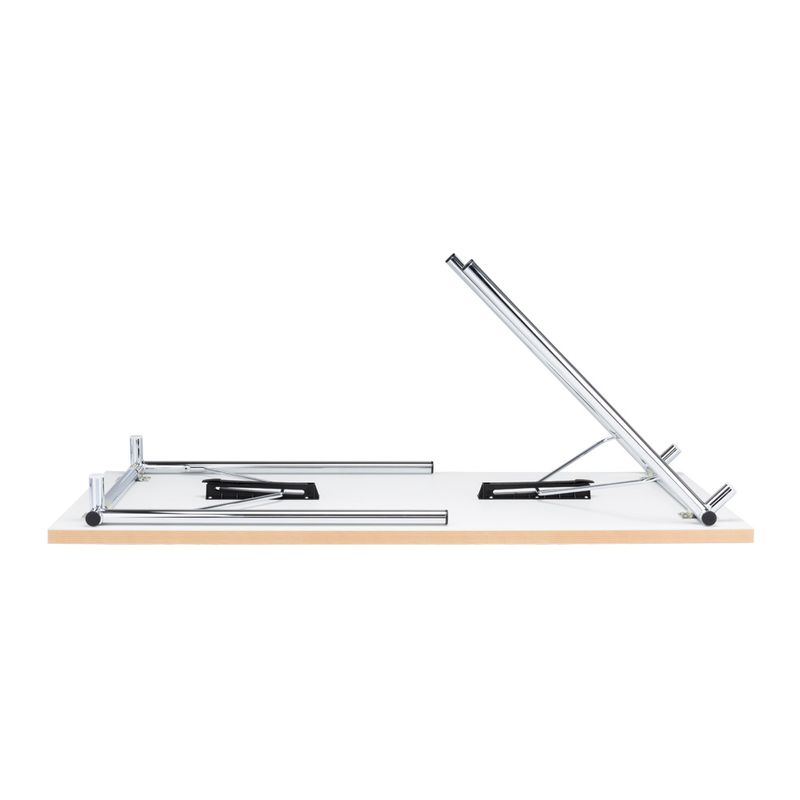

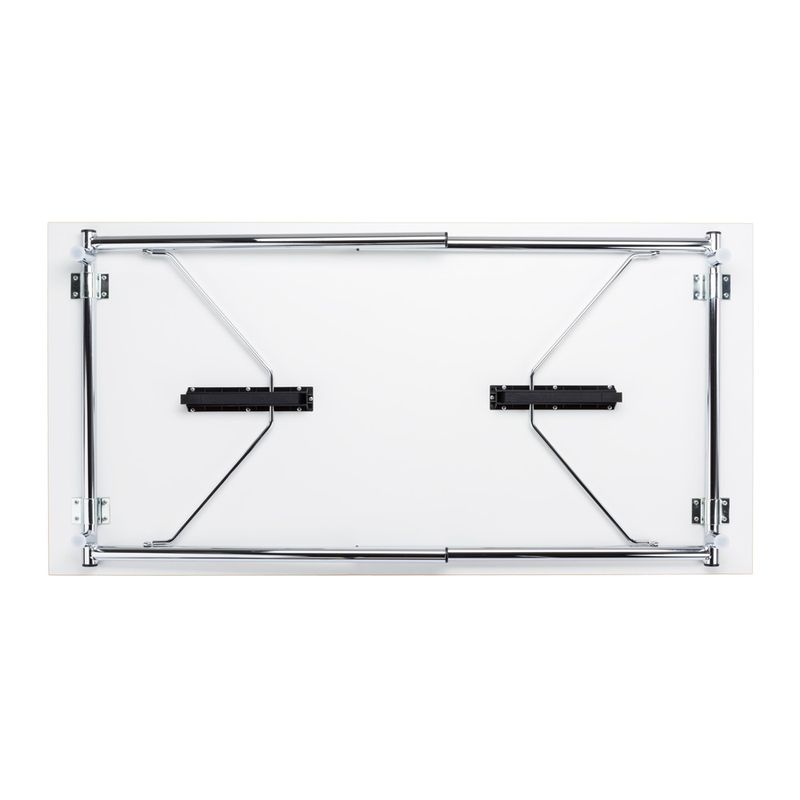

4-foot frame, foldable, made from Ø 30 x 2 mm tubular metal, fully welded, Ø 10 mm riveted wire brackets, no play in the suspension. The foldable sides are suspended in galvanized steel clips. Transversal bars made from Ø 30 x 2 mm tubular metal, two foldable welded stacking devices from Ø 30 x 2 mm tubular metal, with white caps to protect the tables from damage. Mechanism can be locked through an angled wire bracket that is suspended in a (patented) smooth-running plastic rail, push-button operation.

Frame surfaces

Standard version: powder-coated in black, optionally powder-coated according to the BRUNE^® collection or chrome-plated. Chrome-plating structure: nickel gloss 24 my, chromium 5 - 8 my.

Table tops

Plate C: 30 mm thick, high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE^® collection. Lower surface white HPL or beech veneer. Straight edge, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).

Plate D: 30 mm thick, 28 mm thick high-quality multi-layer plywood plate E1, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE^® collection. Lower surface white HPL or beech veneer. Edge with solid beechwood edge band, smooth finish, 9 mm thick.

Plate E: 30 mm thick, 28 mm high-quality multi-layer plywood board E1, coated in high-pressure laminate (HPL) or veneer according to the BRUNE^® collection. Lower surface: white HPL or beech veneer. Edge: solid beech edge band, crowned, 9 mm thick.

Plate H: 20 mm thick, high-quality multilayer plywood plate E1, top surface covered with HPL according to the BRUNE^® collection. Lower surface white HPL. Edge with solid beechwood edge band, smooth finish, 65 mm high, galvanized corners, 15 mm thick.

Alternative option: Plates C, D + E can also be delivered with a lightweight board made from poplar plywood (replacing the E1 board).

Veneer finish

Real wood veneer from the BRUNE^® collection comes as a standard varnished with a low solvent content water-based lacquer, optionally stained to the BRUNE^® collection.

HPL surfaces

Resopal^®-HPL from the BRUNE^® collection.

Gliders

Standard version: Plastic gliders

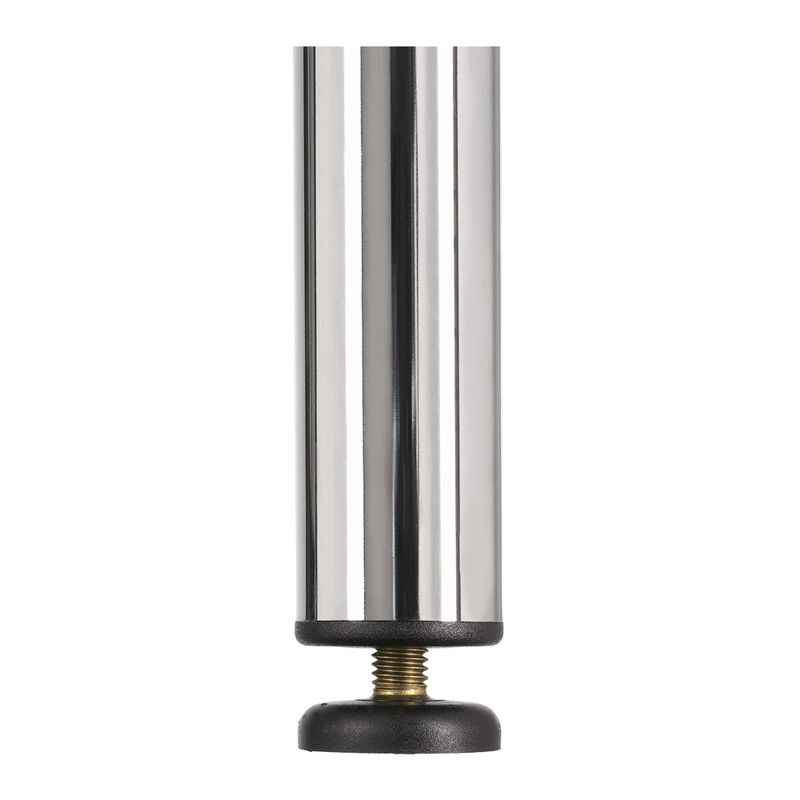

Optionally: plastic height-adjustment screws.

Dimensions

Table height: 75 cm (top C + D + E + R)
74 cm (top H) (+ 5 mm with leveling screws)

Table size: min. 60 cm / max. 180 cm

Rectangle:

• 120x60 cm: 25.5 kg

• 140x60 cm: 25.5 kg

• 160x60 cm: 28 kg

• 120x70 cm: 25.5 kg

• 140x70 cm: 28.5 kg

• 160x70 cm: 31.5 kg

• 120x80 cm: 28 kg

• 140x80 cm: 31.5 kg

• 160x80 cm: 34.5 kg

Trapezoid:

• 140x70x61 cm: 21 kg

• 160x80x69 cm: 25 kg
