4340 ORBIT

ORBIT – timeless, elegant and functional. This classical round column table from the BRUNE® collection combines attractive design with functionality. The light-yet-robust construction of the ORBIT ensures that the table stands firmly on the ground and guarantees a maximum of legroom. With its chrome-plated, high-gloss finish (standard version), the ORBIT discreetly complements just about any – even the most distinguished – environment: a true design classic for many different settings and circumstances.

Downloads
ProductinformationDesigner

Frame

Frame made from a circular steel blank, Ø 490 x 8 mm, powder-coated in black, with 5 adjustable plastic gliders, Ø 40 mm, smooth chrome-plated foot plate with high-gloss finish Ø 500 mm, chrome-plated column with high-gloss finish Ø 80 x 2 mm and a square mounting plate 300 x 300 x 5 mm, powder-coated in aluminium colour. Mounting plates Ø 450 mm with real wood veneer are optionally available for tables with veneered surfaces.



Frame surface

Chrome-plated with a high-gloss finish as standard, optionally powder-coated according to the BRUNE® collection.



Table tops

Table top C: 30 mm thick, multi-layer particle board E1, coated in high-pressure laminate (HPL) or veneer according to BRUNE® collection. Lower surface: HPL white or beech veneer. Straight edges, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).

Table top E: 30 mm thick, 28 mm thick multi-layer particle board E1, coated in high-pressure laminate (HPL) or veneer according to BRUNE® collection. Lower surface: HPL white or beech veneer. Edge: solid beech edge band, crowned, 9 mm strong.

Table top O: 30 mm thick, 28 mm thick multi-layer particle board E1, optionally coated in high-pressure laminate (HPL) according to BRUNE® collection. Lower surface: HPL white, with a crowned, black hollow chamber plastic edge, 19 mm strong to withstand extremely high impact loads.

Table top R: 30 mm thick, 28 mm strong multi-layered plywood, surface coated in high-pressure laminate (HPL) or veneer according to BRUNE® collection. Lower surface: HPL white or beech veneer. Edges multi-layered plywood, straight edges, 9 mm thick, beveled over 35 mm.



Finish of solid edges and veneer

Real wood veneer from the BRUNE® collection comes as a standard varnished with a low solvent content water-based lacquer, optionally stained to the BRUNE® collection.



HPL surfaces

Resopal®-HPL from the BRUNE® collection.



Gliders

Plastic gliders for height adjustment.



Dimensions and weights

Table height:

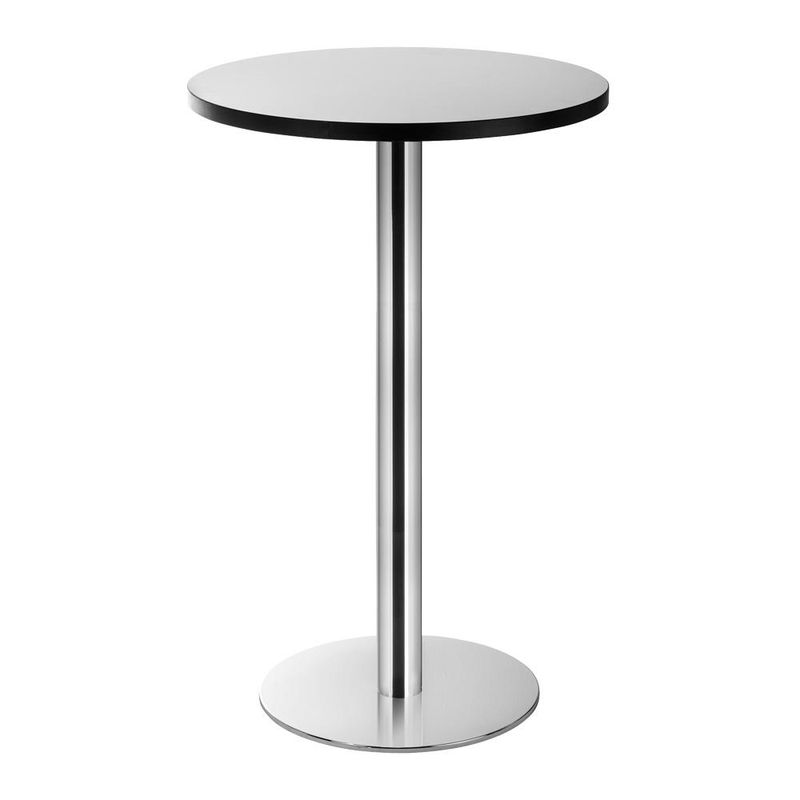

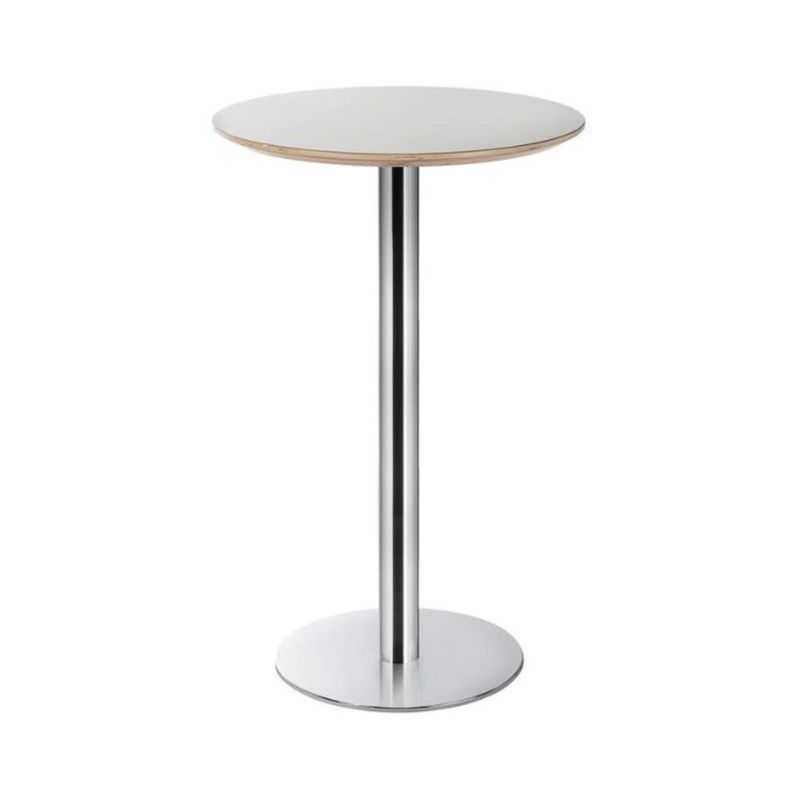

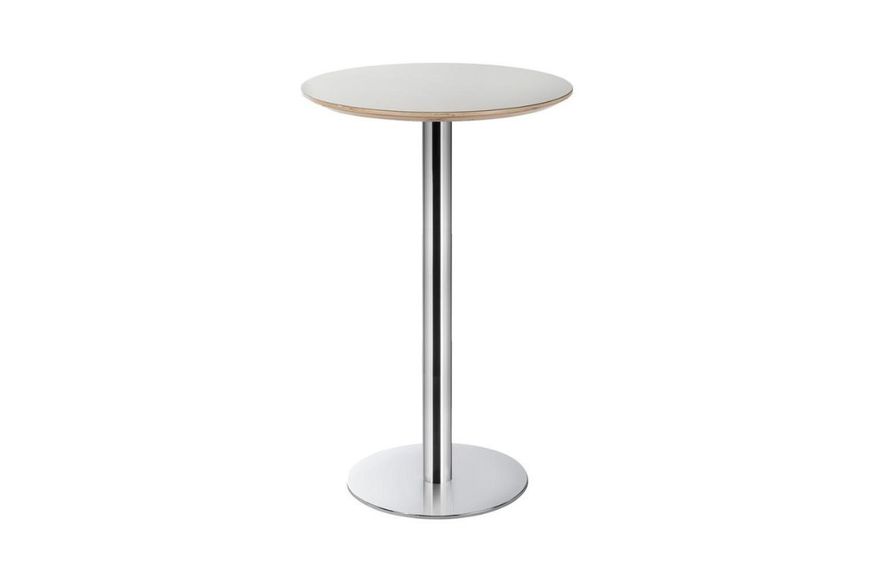

  • Model 4340: 111 cm (Bar table height)

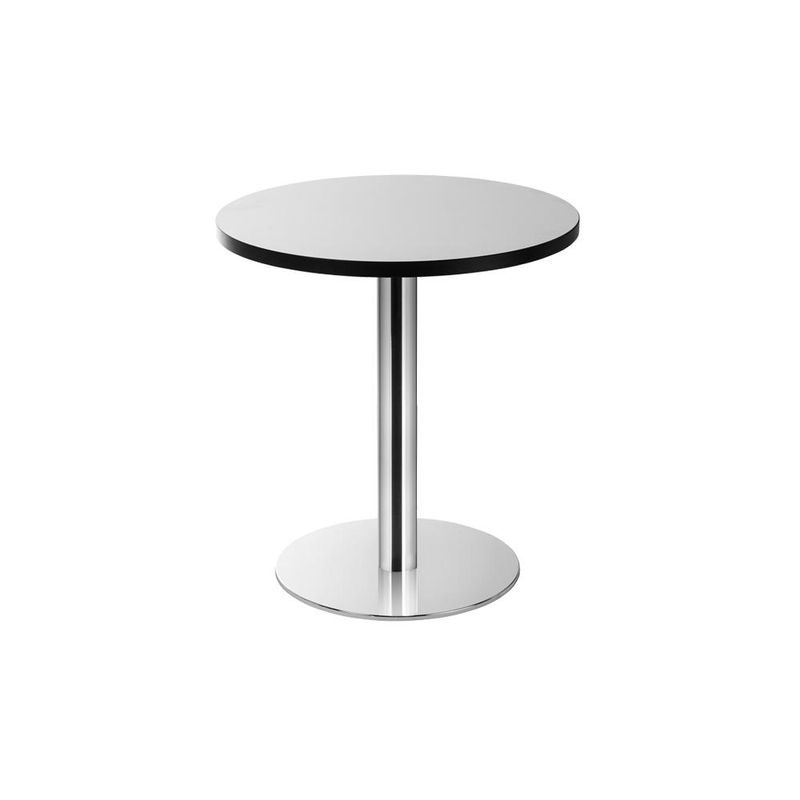

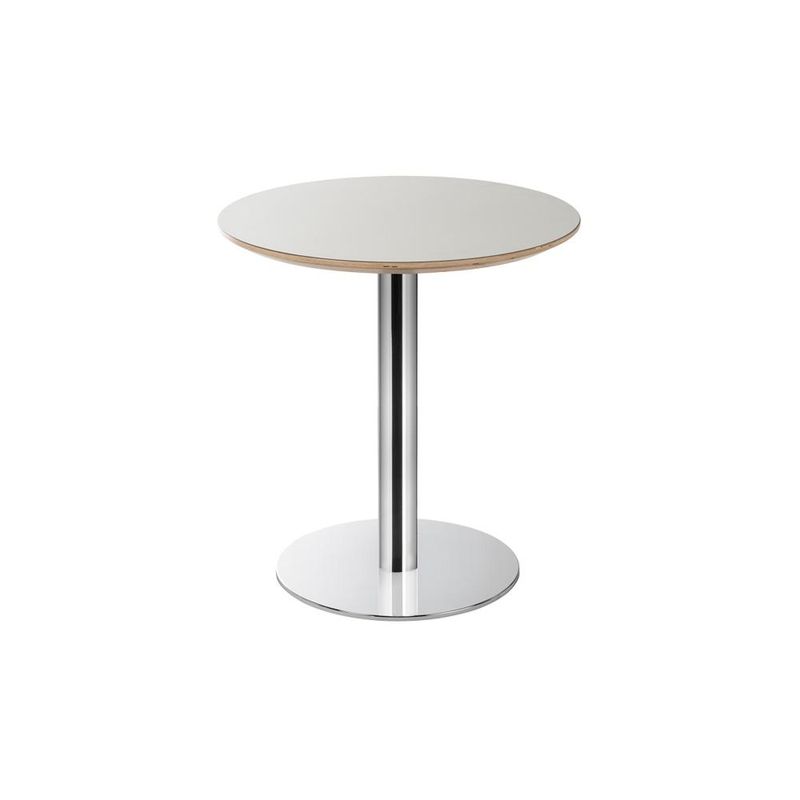

  • Model 4342: 75 cm (Table height)

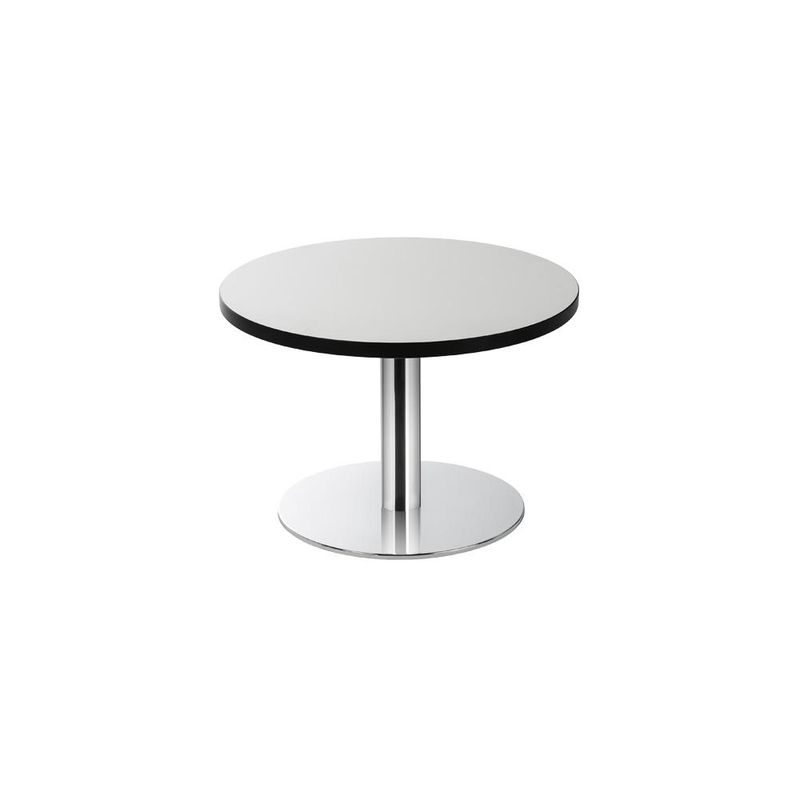

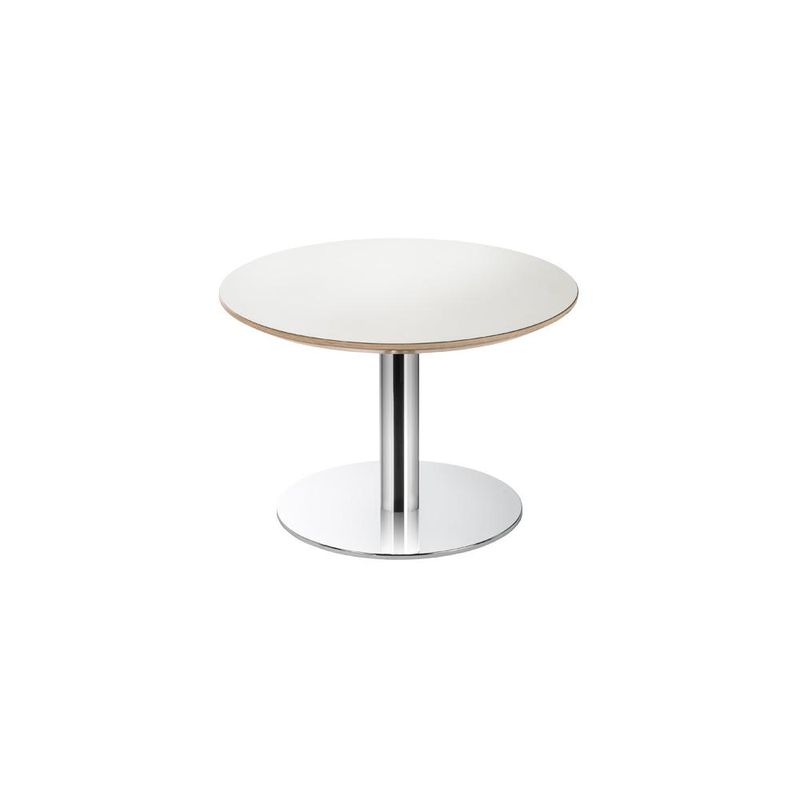

  • Model 4347: 48 cm (Side table height)

Diameter Ø:

  • min. 60 cm

  • max. 80 cm

Weights:

Model 4340

  • Ø 60 cm, 27 kg

  • Ø 70 cm, 30 kg

  • Ø 80 cm, 32.5 kg

Model 4342

  • Ø 60 cm, 26 kg

  • Ø 70 cm, 28 kg

  • Ø 80 cm, 30 kg

Model 4347

  • Ø 60 cm, 25 kg

  • Ø 70 cm, 27 kg

  • Ø 80 cm, 29 kg
