4100

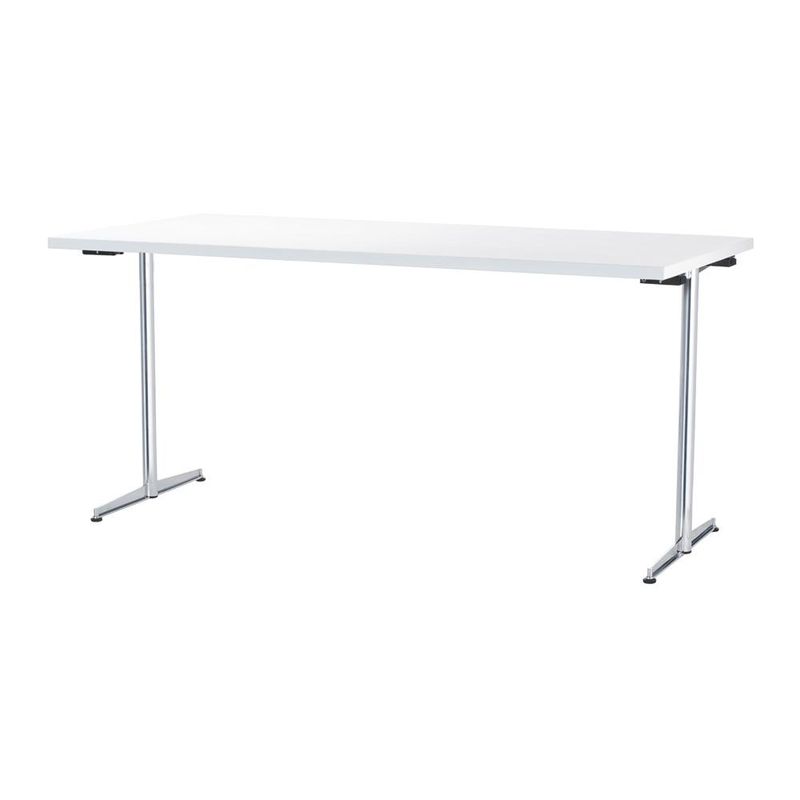

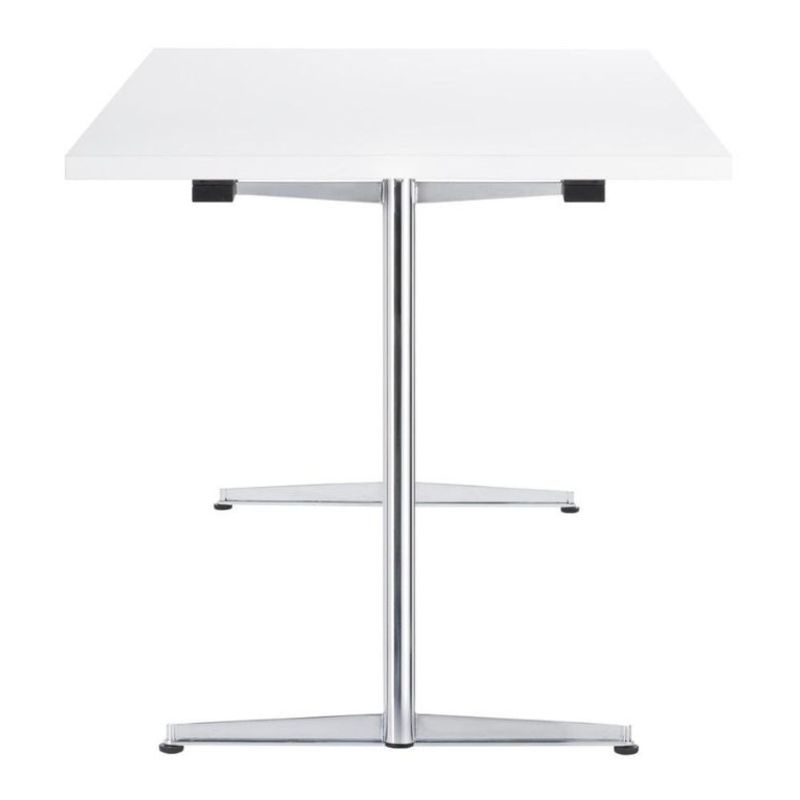

4100 – a high-quality and optically attractive folding table that perfectly complements contemporary furniture in a modern setting. The folding table has been equipped with innovative mechanical technology and is quick and easy to set up, ensuring that it can serve a wide range of functions and purposes in different environments.

Downloads
ProductinformationDesigner

Frame

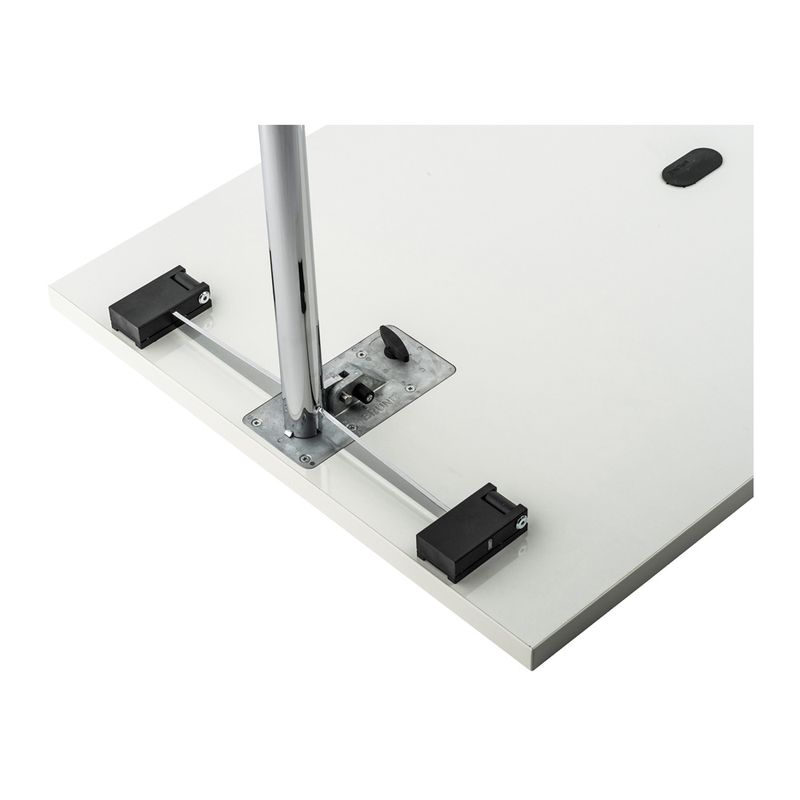

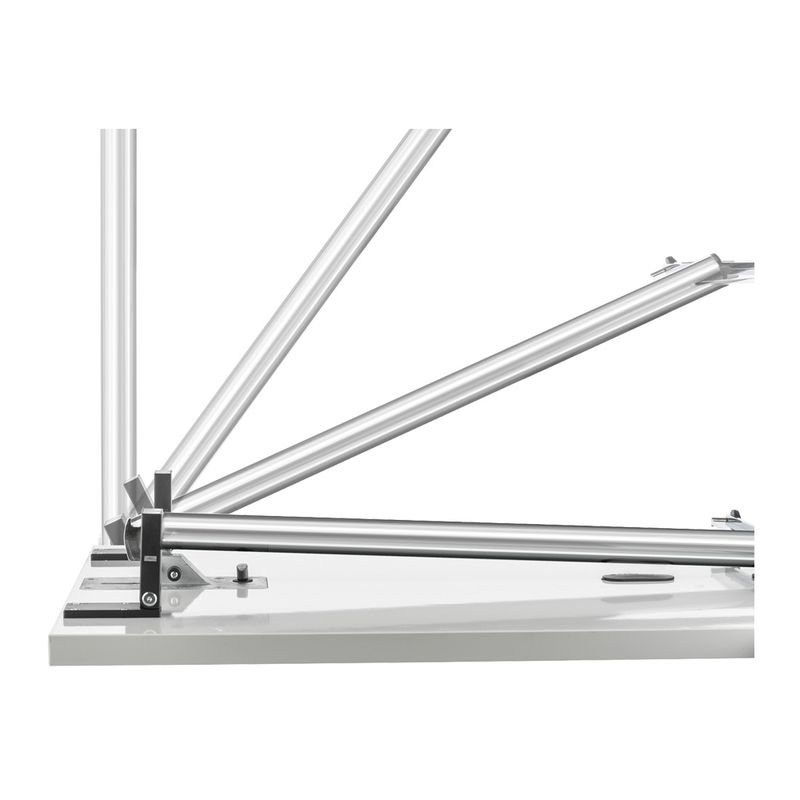

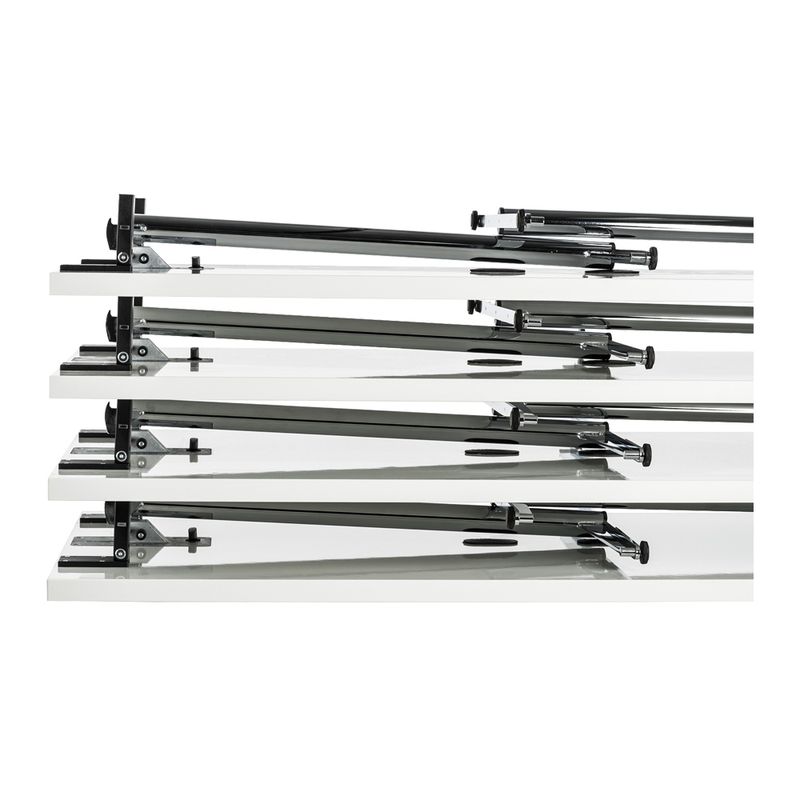

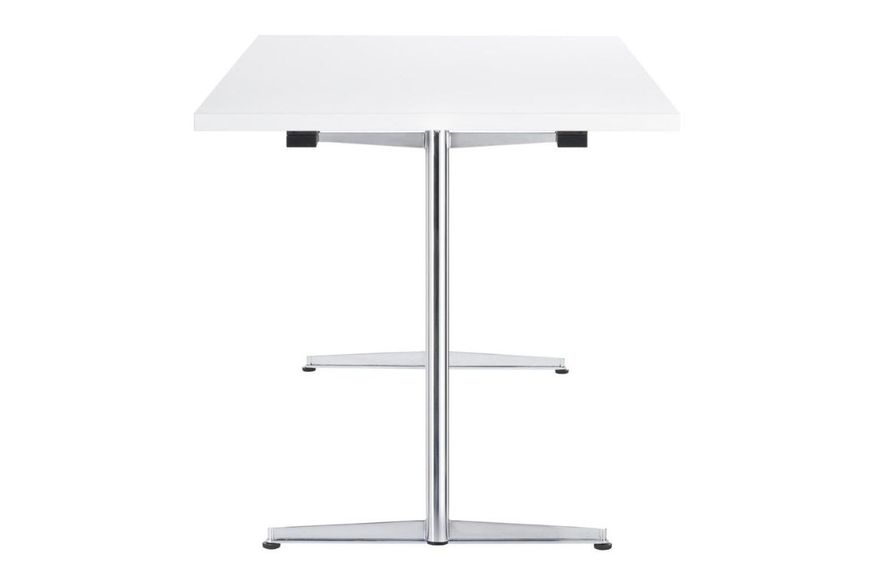

T-base frame, foldable. Frame consists of Ø 40 x 2 mm circular metal columns with high-gloss flat steel stabilizers that each consist of 2 parts (6 x 35 mm and 6 x 20 mm). The upper transversal beams are made from 5 x 27 mm highly polished steel. The two sides of the table are suspended in special two-part hinges. The folding mechanism has been screw-fastened to the table top with threaded sleeves. The release knob is movably mounted, the hinge heads also serve to protect the table when stacked. The end of the column has been equipped with a buffer for shock absorption.



Frame surfaces

Frame surface covered by extra-strong chrome-plating, applied in multiple layers.



Table tops

Plate C-LB: 30 mm thick, (lightweight) poplar plywood board, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE® collection. Lower surface white HPL or beech veneer. Straight edge, 2 mm thick, in material to match table top (plastic for plastic, veneer for veneer).

Plate D-LB: 30 mm thick, 28 mm thick (lightweight) poplar plywood board, top surface optionally covered with HPL plastic or wood veneer according to the BRUNE® collection. Lower surface white HPL or beech veneer. Edge with solid beechwood edge band, smooth finish, 9 mm thick.

Plate E-LB: 30 mm thick, 28 mm (lightweight) poplar plywood board, coated in high-pressure laminate (HPL) or veneer according to the BRUNE® collection. Lower surface: white HPL or beech veneer. Edge: solid beech edge band, crowned, 9 mm thick.



Veneer finish

Real wood veneer from the BRUNE® collection comes as a standard varnished with a low solvent content water-based lacquer, optionally stained to the BRUNE® collection.



HPL surfaces

Resopal®-HPL from the BRUNE® collection.



Gliders

Height-adjustable plastic base gliders, optionally with felt.



Dimensions

Height: 75 cm

Rectangular

  • 120x60 cm, 18 kg

  • 140x60 cm, 19,5 kg

  • 160x60 cm, 21,5 kg

  • 180x60 cm, 23 kg

  • 120x70 cm, 19,5 kg

  • 140x70 cm, 21 kg

  • 160x70 cm, 23 kg

  • 180x70 cm, 25 kg

  • 120x80 cm, 21,5 kg

  • 140x80 cm, 23,5 kg

  • 160x80 cm, 25,5 kg

  • 180x80 cm, 27,5 kg

Trapezoid

  • 140x70x61 cm, 17 kg

  • 160x80x69 cm, 19,5 kg

Semicircle

  • Ø 140 cm, 19 kg

  • Ø 160 cm, 21 kg

Downloads for this product

Loff & Wagner

Loff & Wagner

Delphin Design was founded in 1992 by Thomas Wagner (born 1962 in Berlin) and Dirk Loff (born 1963 in Leipzig).
Both of them completed an education (tool producer / skilled worker for woodworks) before they met each other at the Art University Berlin/Weissensee when studying Industry Design. After the studies, they collected experience in several offices in Germany and Switzerland.
In their studios in Berlin and Leipzig, product lines were developed for the furniture industry, sanitary area, machine manufacture as well as the household-product and electronic industry.
They measure the quality of their work by an optimal functionality, cheap manufacturing and long-lasting aesthetics. Their designs have been awarded with renowned design awards several times.
