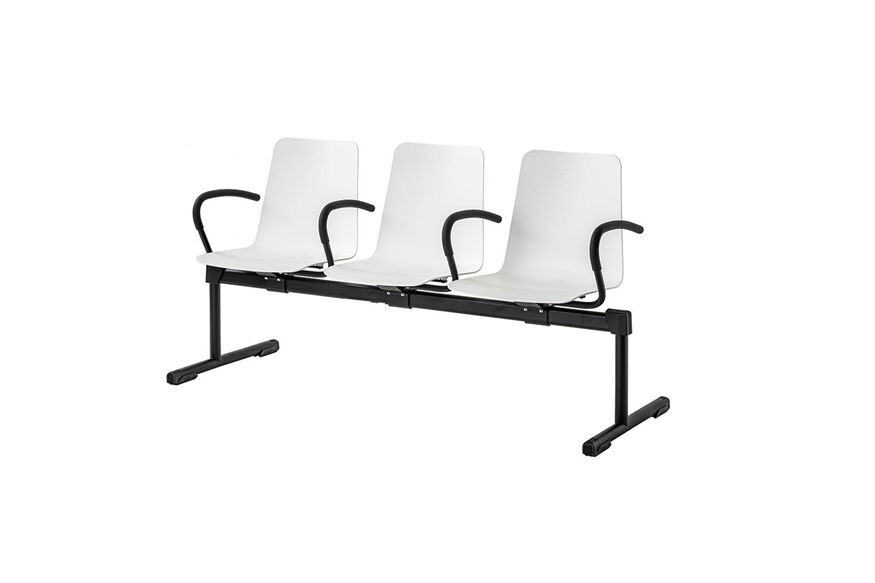

TYPO2
Waiting in elegant form. The modular seating furniture that adapts to your specific requirements. Seats, storage tables and armrests are configured according to your wishes and thus support your customized furnishing concept.
Downloads
- 1140B-001.dwg
(2 MB) - 1140B.dwg
(1 MB) - 1141B.dwg
(2 MB) - 1145B-001.dwg
(2 MB) - 1146B.dwg
(2 MB) - 1160B-001.dwg
(2 MB) - 1160B.dwg
(2 MB) - 1165B-001.dwg
(2 MB) - 1165B.dwg
(2 MB) - 1166B.dwg
(2 MB) - 1170B.dwg
(261 KB) - 1171B.dwg
(261 KB) - 1172B.dwg
(276 KB) - 1145B.dwg
(3 MB) - 1161B.dwg
(2 MB) - TYPO2_Produktinformation_EN_Mail.pdf
(599 KB)
Surface
T-shaped side-sections made of round steel tube Ø 40 x 2 mm, soldered, welded to the crossbar made of oval tube 60 x 30 x 2 mm. The welded connection is covered with black plastic caps.
Frame surface
Base frame and crossbeam powder-coated in black as standard, optionally powder-coated in accordance with the BRUNE® collection.
Tabletop
Resopal solid-core: Top 10 mm thick, HPL solid anthracite, rounded corners.
Seatshell
Ergonomically shaped plastic shell made of polypropylene in a 2-component sandwich structure with high glass fibre reinforcement, which is characterised in particular by its high seating comfort and full recyclability. The shell is made from 50% recycled material.
Plasitic colors
White*
Pastel Yellow*
Brick Red*
Light Blue*
Middle Grey*
Slate Grey*
* The colors shown deviate from the original colors. We will be happy to provide you with corresponding original color samples.
Upholstery
Choice of fabric cover from BRUNE® fabric group 3, 4, 6, 7 or 8.
Seat cushion: 15 mm thick, SG 60 / CH 70
Full upholstery: 15 mm thick, SG 57 / CH 60
(SG = specific gravity, CH = compression hardness)
Gliders
Standard: plastic gliders for all floor coverings
Optional: with borehole for bottom attachement
Dimensions | 1140B 2-seater bench
Dimensions:
B: 113 cm
T: 63 cm
H: 88 cm
SH: 45 cm
Weights:
17 kg
18 kg (with seat cushion or fully upholstered)

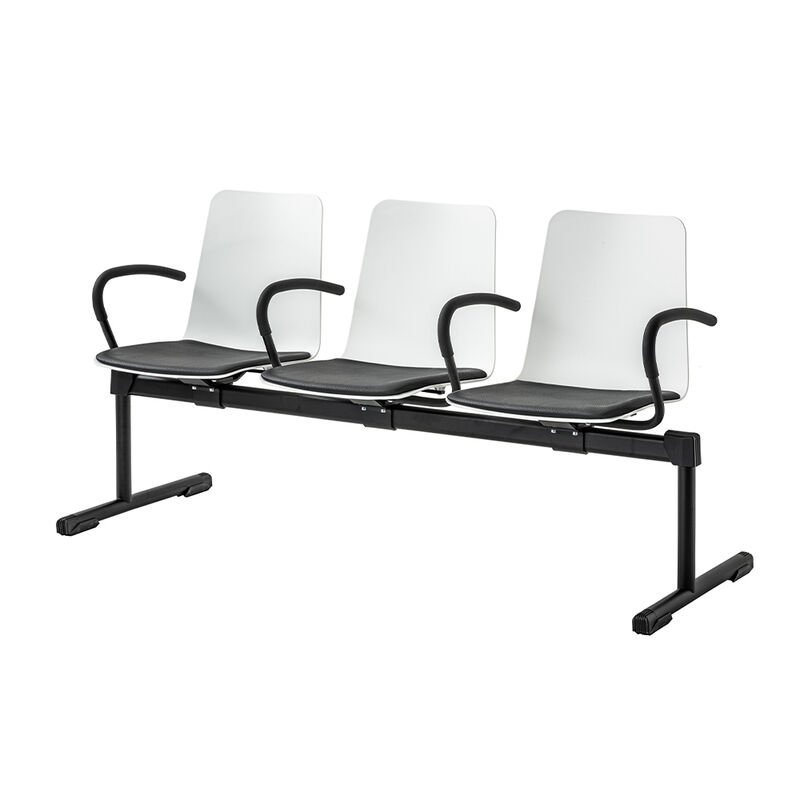

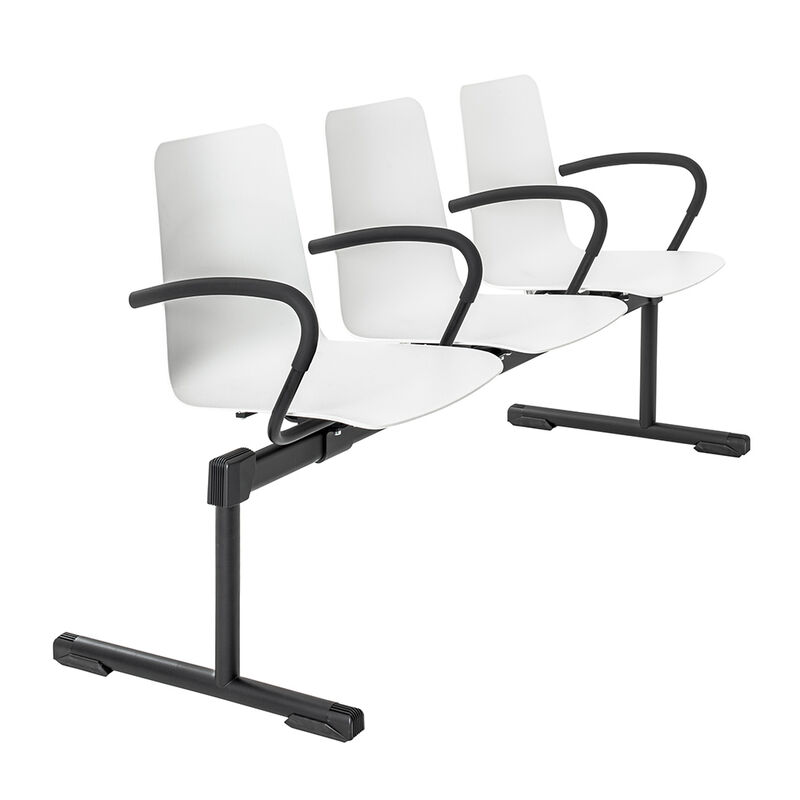

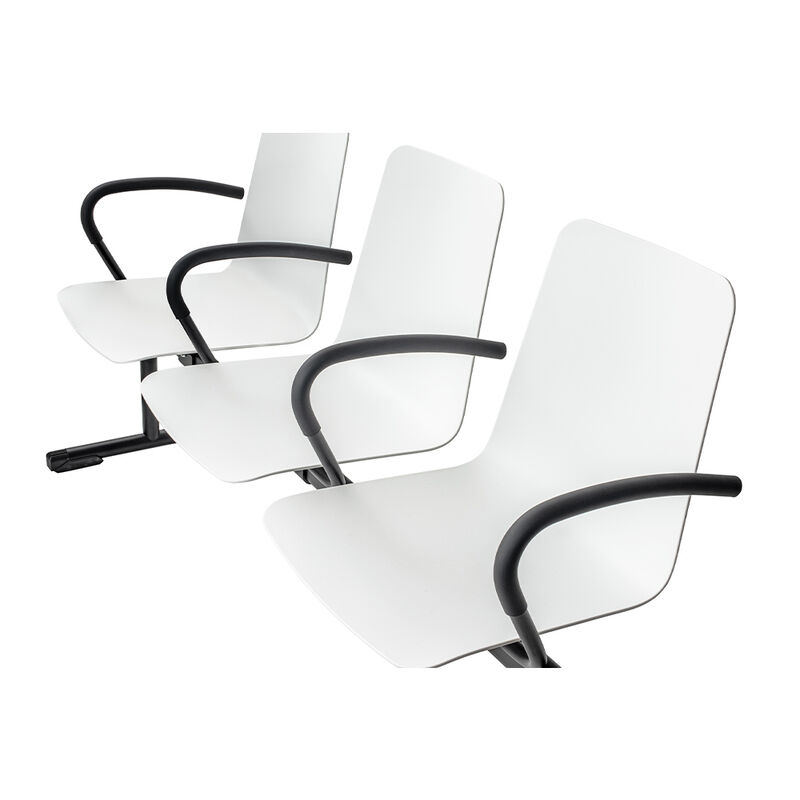

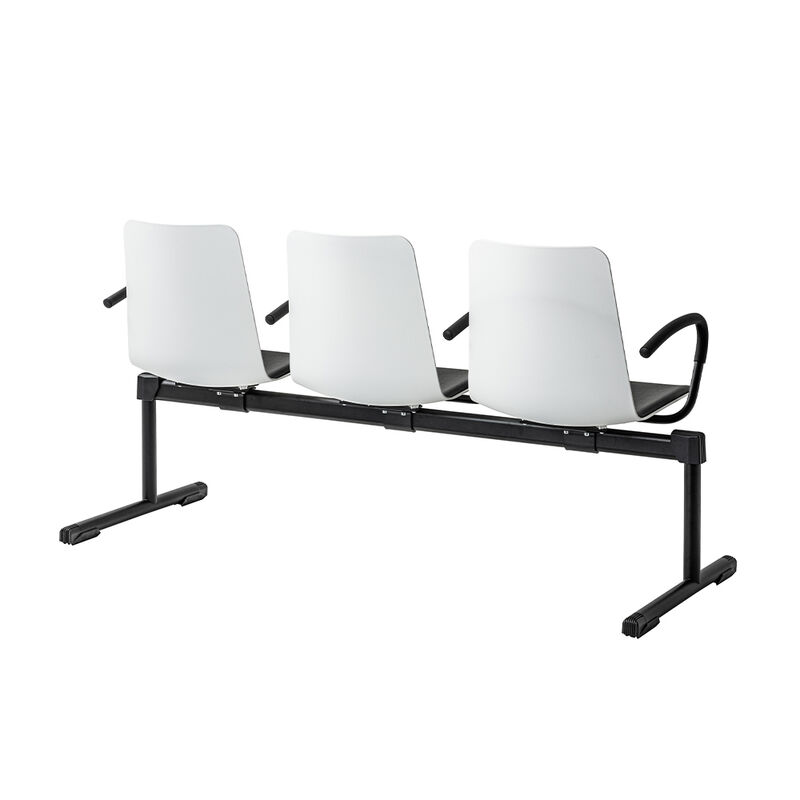

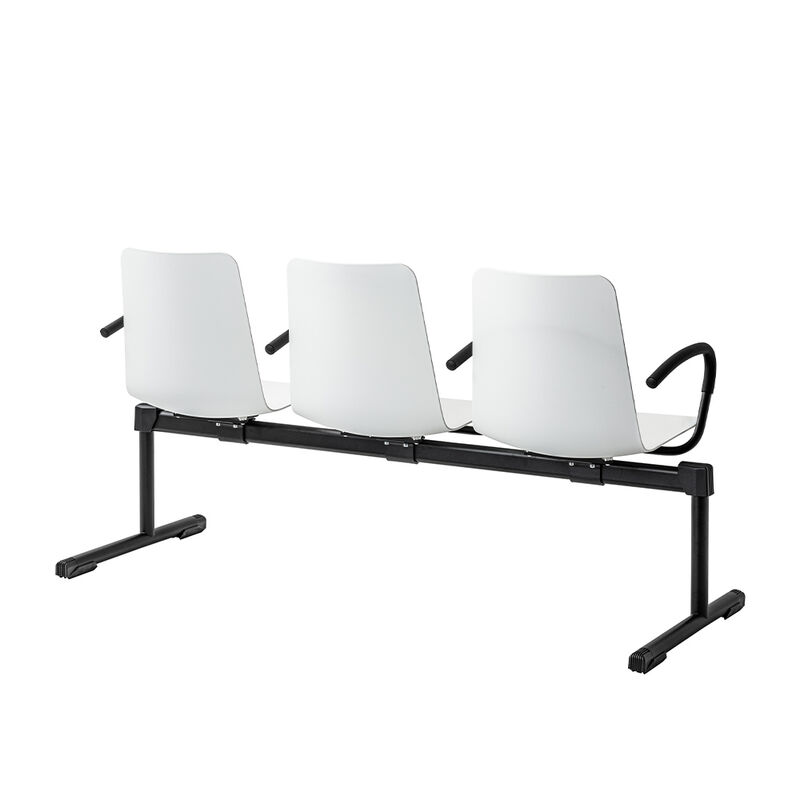

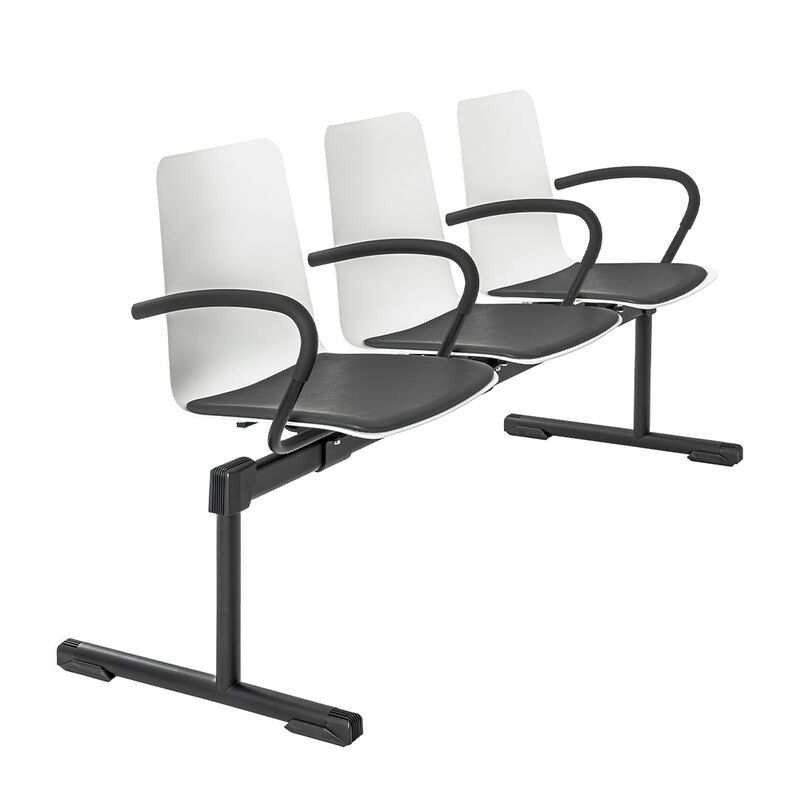

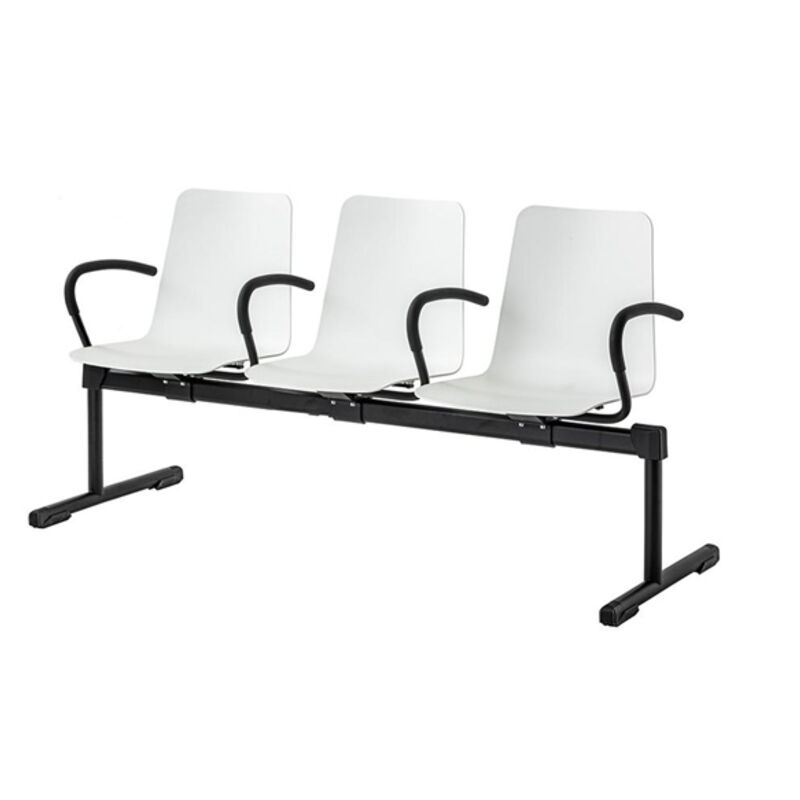

Dimensions | 1145B 3-seater bench
Dimensions:
B: 163 cm
T: 63 cm
H: 88 cm
SH: 45 cm
Weights:
23 kg
24,5 kg (with seat cushion or fully upholstered)

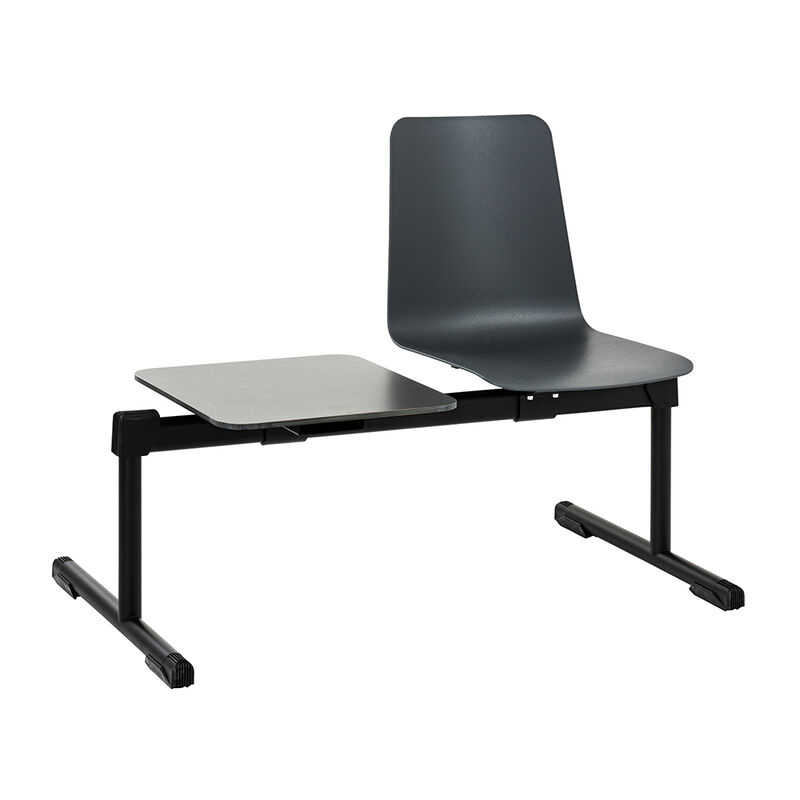

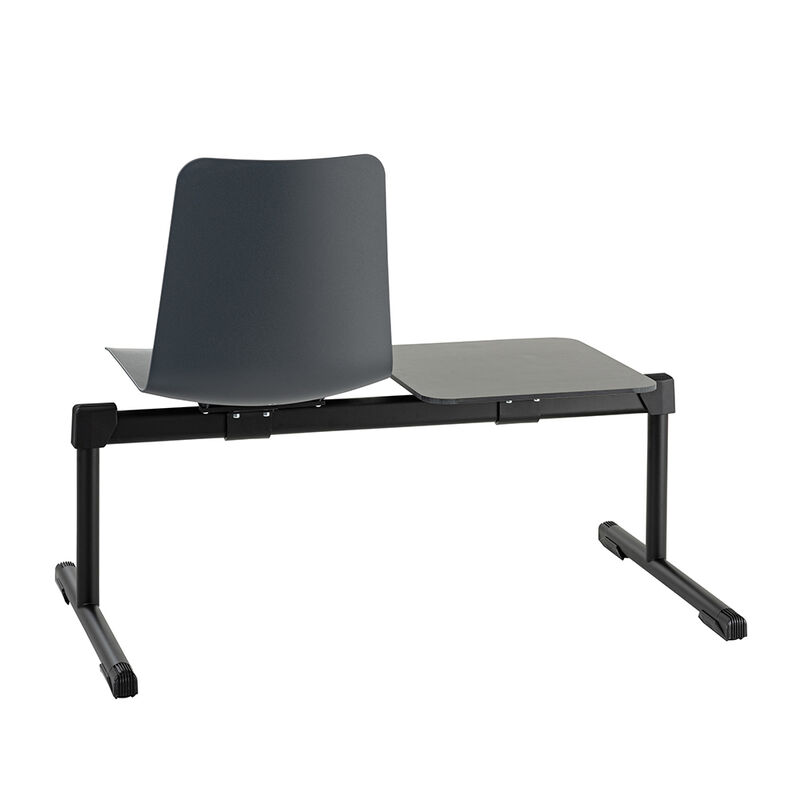

Dimensions | 1160B 1-Seater + table
Dimensions:
B: 113 cm
T: 63 cm
H: 88 cm
SH: 45 cm
Weights:
17 kg
18 kg (with seat cushion or fully upholstered)
Dimensions | 1165B 2-Seater + table
Dimensions:
B: 163 cm
T: 63 cm
H: 88 cm
SH: 45 cm
Weights:
23 kg
24 kg (with seat cushion or fully upholstered)
Weight | 1170B – 1172B armrests
Weights:
1,5 kg (armrest left)
1,5 kg (armrest right)
1,8 kg (armrests both sides)
